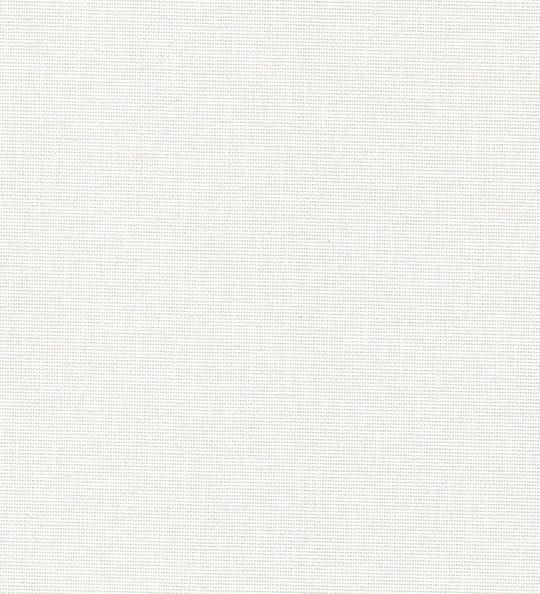

WHITE/WHITE

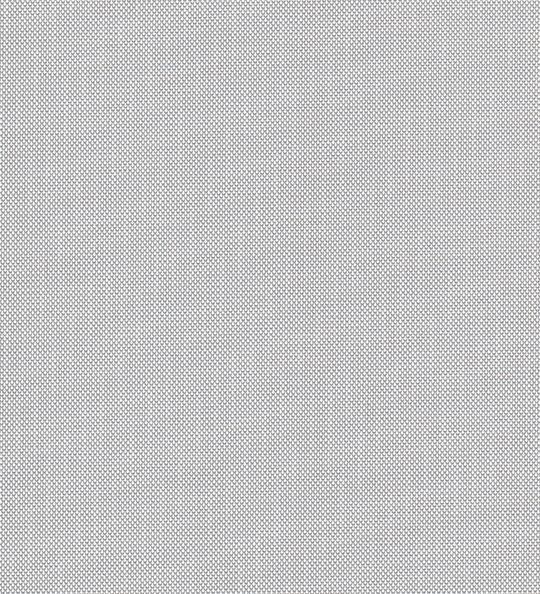

WHITE/PEARL

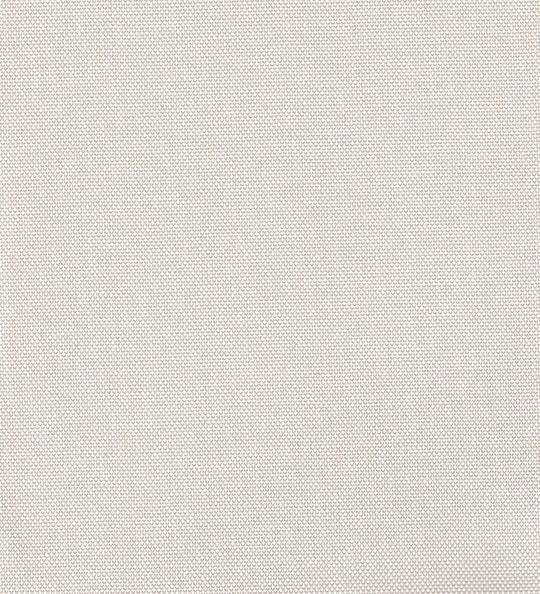

WHITE/LINEN

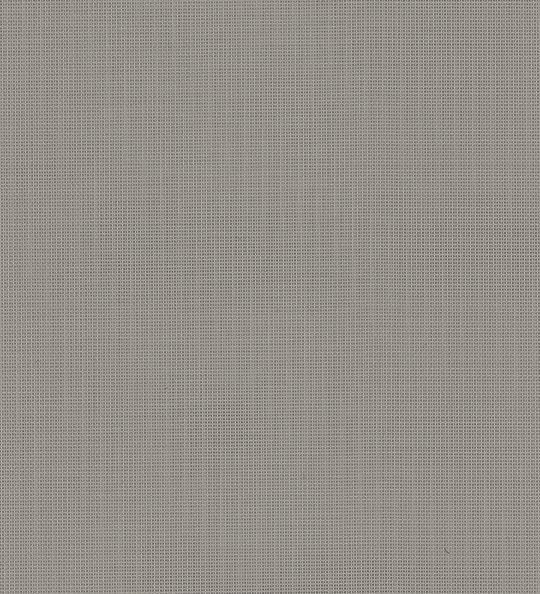

PEARL/PEARL

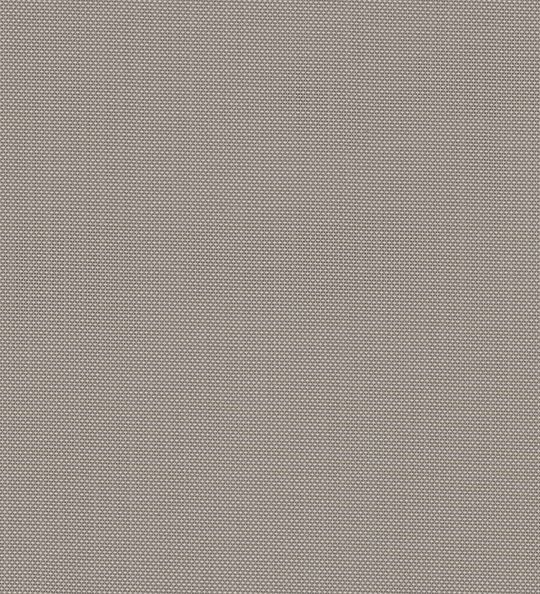

PEARL/LINEN

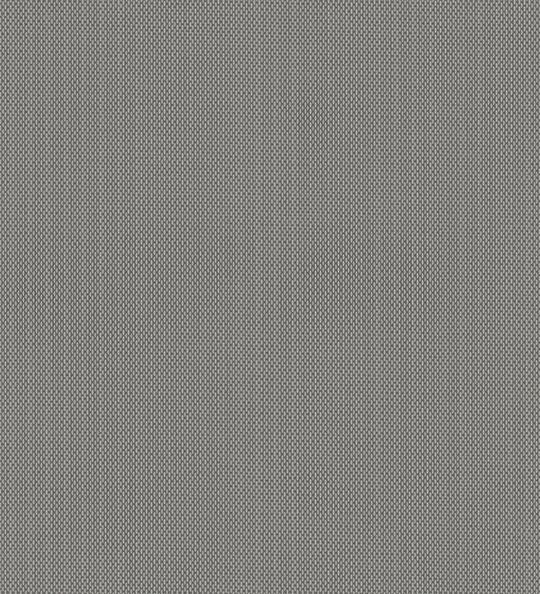

PEARL/GREY

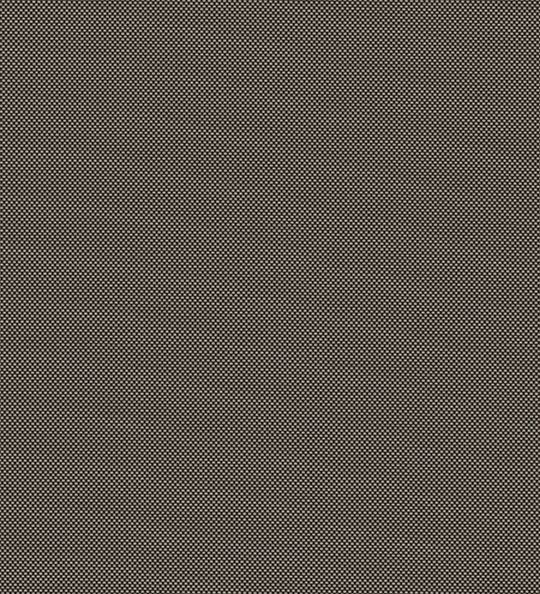

CHARCOAL/GREY/STONE

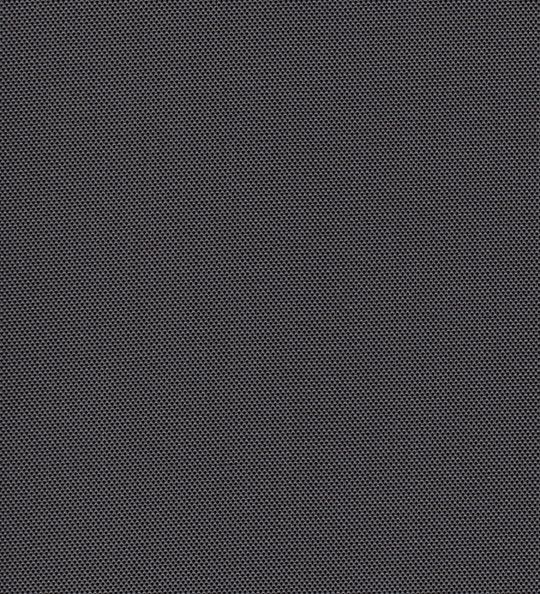

CHARCOAL/GREY
CHARCOAL/CHARCOAL
ELITE PRO ESSENTIALS
PROWEAVE E
OPENNESS 1%, 3%, 5%, 10%
A classic 2×2 basket weave solar screen fabric. ProWeave E is constructed from fiberglass core yarns making it thinner, stronger, and lighter than most other polyester core screens.
KEY FEATURES
COLOURS
SPECIFICATIONS
UV BLOCKAGE
(1%) - 99%
(3%) - 97%
(5%) - 95%
ACOUSTIC RATING
N/A
COMPOSITION
36% Fibreglass, 64% Vinyl
WEAVE STYLE
2x2 Basket Weave
WIDTH
78" (200 cm)
98” (234 cm )
122" (310 cm)
FABRIC WEIGHT
(1%) - 452 g/m2 (13.33 oz/sqyd)
(3%) - 393 g/m2 (11.59 oz/sqyd)
(5%) - 363 g/m2 (10.71 oz/sqyd)
FABRIC THICKNESS
(1%) - 0.52mm (0.020”) ± 5%
(3%) - 0.43mm (0.017”) ± 5%
(5%) - 0.41mm (0.016”) ± 5%
GREEN STANDARDS
GreenGuard Gold
Fungal Resistance
ASTM E2180 & ASTM G21
RoHS - Lead Free
FIRE CLASIFICATION
NFPA 701-10 TM#1
CAN/ULC-S109-03 Small & Large Flame Test
California U.S. Title 19
CERTIFICATIONS
FAQ
Frequently Asked Questions
What is “PVC‑free blackout” fabric?
PVC-free blackout fabrics use a soft foamed or textile backing, offering 100% UV protection and privacy without PVC.
How do Elite Pro shades reflect heat and reduce glare?
Some Elite Pro fabrics bond a micro-thin aluminum layer to the weave, reflecting up to 74% of solar energy, reducing glare, and maintaining outward view with a two-tone appearance.
Do blackout fabrics always look opaque inside?
Yes—all blackout fabrics ensure full light blockage and privacy when shades are down.
What is the widest width available for blackout fabrics?
Vinyl Blackout is offered in XL widths (up to 120") to accommodate large windows without seams.
Are blackout fabrics offered in multiple colours or textures?
Absolutely. For example, some popular Elite Pro shades offer colours like Linen, Mushroom, White, Black, Sand, and Grey; and others come in Canvas, Chalk, Khaki, Charcoal, and more.
